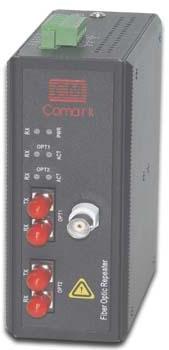

Comark Industrial Modem for controlnet fieldbus

Protocol repeater
p/n: ci-cf120-s
single mode fiber, dual fiber ports, transmission distance 20km, connector st/sc/fc, max rate data: 5m.
description:
the ci-cf120 series is designed for use in optical controlnet fieldbus networks. Feature with data rate up to 5m,35mm din rail mounting, redundancy power input(9v~30vdc),relay output alarm. Ci-cf120 contains two fiber optic transceivers one electrical interface. The repeaters provide fiber optic connection in point to point, star, daisy chain topologies networks.
specification
electrical interface
wire cable connection: bnc f-male
signal type: controlnet fieldbus
data rate:5m
isolation voltage: instantaneous voltage 5000v, constant voltage 1000v
wire end termination:internal,75ω
optical interface
wave length: single mode 1310 nm,1550nm
fiber type: single mode 8.3/125 um,9/125um,10/125um
transmission distance: sm 20km
fiber interface type: st/sc/fc (optional); st (standard configuration).
power
input voltage: 24vdc(9vdc~30vdc)
support dual power backup
consumption:24vdc@60ma(≤1.5w)
with dc1000v voltage isolation and reverse connect protection
5-pin pluggable screw terminal
relay
contact rating: dc48v/1a max
fiber link fault and no voltage input alarm
industrial pluggable screw terminal
mechanical
dimensions: 132mm×52mm×105mm (h×w×d)
casing: ip30 protection, metal case
installation: 35mmdin-rail, wall mounting
weight :725g
environmental
operating temperature: -10°c to 70°c (-40°c to85°c optional)
storage temperature: -40°c to 80°c
ambient relative humidity: ≤90% (non-condensing)
[order information]
part no.
description
unit
ci-cf110-m
multimode fiber 2km, one fiber port, connector st/sc/fc, max rate data: 5m.
pcs.
ci-cf120-m
multimode fiber 2km, dual fiber ports, connector st/sc/fc, max rate data: 5m.
pcs
ci-cf110-s
single mode fiber, transmission distance: 20km, single fiber port, connector st/sc/fc, max rate data: 5m.
pcs
ci-cf120-s
single mode fiber, dual fiber ports, transmission distance 20km, connector st/sc/fc, max rate data: 5m.
pcs
