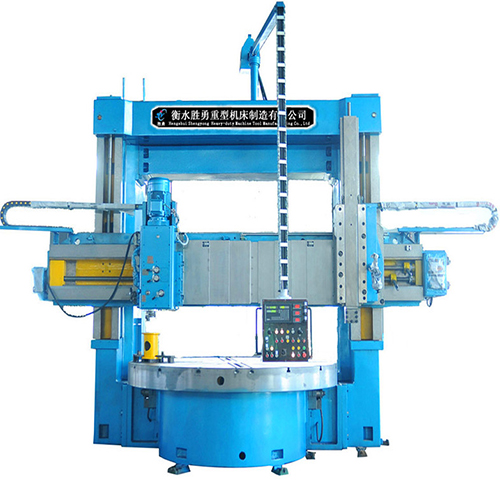

Combination CNC Vertical Lathe Machine

Combination cnc vertical lathe machine for sale can process ferrous metal, non-ferrous metal and some non-metal workpieces. The vertical lathe machine can control X, Z axes movement at the same time and use high speed steel or carbide cutting tools.
The lathes for sale are are made of high rigidity resin castings processed with thermal stress relief aging treatment. Small cast iron bodies are hardened at a high temperature. All the steel parts are thermal refined to ensure a long and dependable service life for the lathe.If you ant to know more infomation of the cnc machine cost or vertical lathe machine price,please feel contact us freely.
Technical specification of Combination cnc vertical lathes for sale CK5232
1 Maximum turning diameter 3150 mm
2 Maximum Height of workpiece 16002000220025003000 mm
3 Maximum Weight of workpiece 1020 t
4 Table diameter 2830 mm
5 Speed range of table 2-63 rmin
6 Maximum torque 63 KNmin
7 Vertical Travel of tool post 10001250 mm
8 Horizontal travel of tool post 1735 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 55 kw
11 Machine weight About 36-50 t
