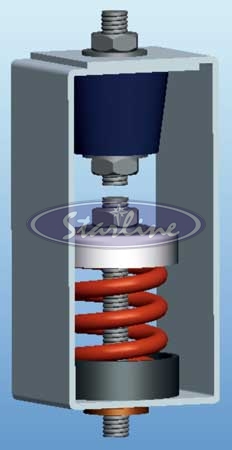

Combination Spring Hanger

The combination spring hanger (50 mm) manufactured by us is demanded to be used for suspension of heavy rotating equipment that includes fan coil units, air handling units, ventilation fans, pipes large variable air volume boxes, and air ducts in mechanical rooms. qualities

• g.i. Steel frame with powder coated to 100 microns paint thickness (exceeding 1000 hours of salt spray test)
• neoprene component acts as effective acoustic barrier
• assurance of protection against noise transmission
• molded neoprene cup to prevent contact of metal and spring
• compensation of suspension rod misalignment of 30 degree arc in hanger design
• locking rubber bush to prevent dislocation and centralize the spring
• effective isolation
• spring diameter ensuring prevention from buckling of spring even when fully loaded
• powder coated springs with appropriate color coding for easy identification
• selection
  • point load including all variables like weight of water in pipe lines and others
  • specifications isolator modelrated load (kg)spring coloursdimensions (mm)lwsf*rfhdscsh50-b2525green776011846215m12scsh50-b5050redscsh50-b7575blackscsh50-b100100yellowscsh50-b150150bluescsh50-c200200green948012773270m16scsh50-c250250redscsh50-c300300black948013573270m16scsh50-c400400yellowscsh50-c500500blackgreenscsh50-c600600yellowgreenscsh50-g700700black1079516373315m20scsh50-g800800yellowscsh50-g10001000bluescsh50-g12001200bluegreen1079516373335m24scsh50-g14001400bluebrown
