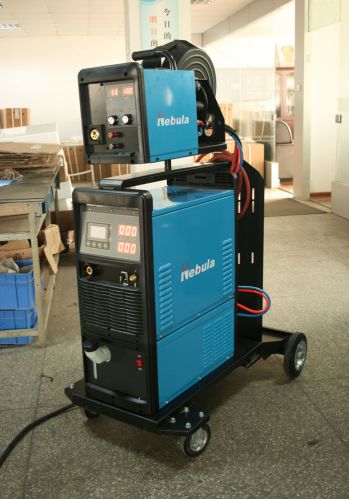

Combined Digital Welding Machine

Digital Eight-process Combined Welding Machine 1.Controlled by DSP, put power source, wirefeeder,water tank and trolly in one machine
2.Eight processes: MMA/ Carbon Arc Gouging/TIG/Pulsed TIG/ Spot TIG/MIG/Pulse MIG/Double Pulse MIG
3.Adopt IGBT inverting technology, small size and light weight, low consumption
4.LCD and digital display
5.Digital coder and double driven used in the wire feeder can make the wire feed more precise
6.Adopt water cooling method and be suitable for high current in the continuous welding
7.With expert database, suit for all kinds of welding materials and thick metals
8 More than 30 welding parameters stored in the machine, you can operate and use easily
Model No. Nebula400 Nebula500
Rated input voltage(V) Three-Phase A.C. 380V,50/60Hz
Current range(A) 30-500 30-500
Rate No-load Voltage (V) 55V-80V 55V-80V
Current range(A) 30-500 30-500
Voltage range(V) 10V-48V 10V-48V
Duty Cycle(%) 60% 60%
Power factor ≥0.85 ≥0.85
Insulation Class H H
Net Weight(Kg) 85 85
Wire Material Diameter Welding method Gas Worker piece
Low carbon steel 0.8-1.6mm MIG CO2 ordinary low-carbon steel
MAG CO2(20%)
Ar(80%)
Aluminum and aluminum alloy 1.0-1.6mm MIG Ar Aluminum and its alloy
Stainless steel 0.8-1.6mm MAG
