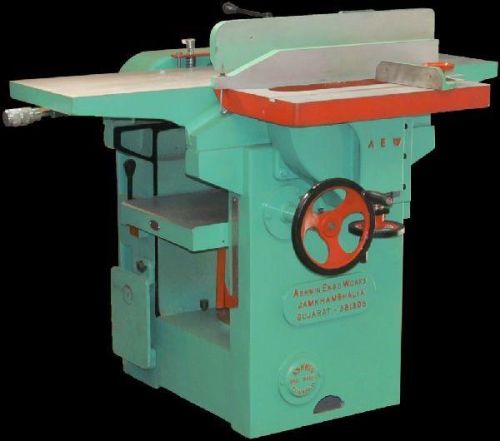

the main frame is exceptionally heavy with large base area to eliminate vibration and shaped to afford good foot room for the operator and the surfacing tables are long and scraped dead true to enable the machine to make perfect qlue joints.each table has also a rising and falling motion, fence is designed to give absolute rigidity in all positions it will cant to 45 degrees.the thicknessing table is long and provided with raised and lowered by a handwheel at the side of the machine and all mechanism controlling this motion is enclosed from dust. An index scale in mm and in. sizes indicates the exact thickness of timber being planed.the cutter block is of two-knife circular safety-type and runs in heavy type ball bearings it also can be used without interfering with the feed rolls
| Model no | AI-9 mm / inch |
AI-13 mm / inch |
AI-13 mm / inch |
AI-18 mm / inch |
|---|---|---|---|---|
| surfaceing capacity | 228 / 9" | 328 / 13" | 328 / 13" | 455 / 18" |
| thickness capacity | 202 / 8" | 202 / 8" | 202 / 8" | 202 / 8" |
| length of surface table | 914 / 48" | 914 / 48" | 1524 / 60" | 1524 / 60" |
| circuler saw table size | 558 x 340 22" x 14" |
558 x 340 22" x 14" |
558 x 340 22" x 14" |
558 x 340 22" x 14" |
| cutter block spped (rpm) | 4500 | 4500 | 4500 | 4500 |
| power rquired hp / rpm | 2 / 1440 | 3 / 1440 | 3 / 1440 | 3 / 1440 |
| approx wt.of machine | 375 kg | 525 kg | 550 kg | 610 kg |
