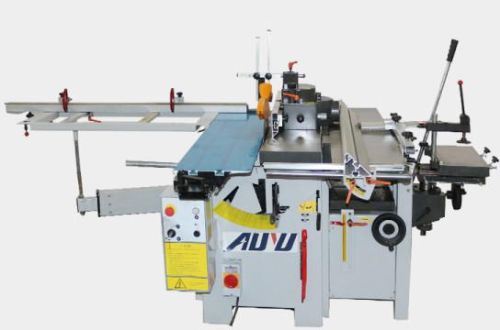

Contact SupplierWe are offering combined woodworking machine.
1.heavy duty,ce standard
2.functions
surface planer, thicknesser, sawing, mortiser, driller, profiling, mouldersurface planer
working table 300*1500mm
planer shaft dia. 70mm
planer shaft rotation speed 5700rmin
knives quantity 3pcs
knife dimension 300*30*3mm
knife min. Height 15mm
workpiece min. Thickness 10mm
infeed table max. Adjustment 4mm
thicknesser
work table 300*660mm
workpiece min. Length 200mm
max. Removal thickness 5.5mm
piece passage 220mm
min. Piece passage 4mm
mortiser
work table 230*500mm
longitudinal stroke 200mm
cross stroke 100mm
vertical stroke 60mm
tool coupling dia. 16mm
saw
work table 550*1130mm
carriage dimension 1250*310mm
rotation speed 4375rmin
blade dia. 300mm
blade hole dia. 30mm
cutting height at 90° 45° 75mm50mm
tilting blade 45°
useful cutting 1450mm
scorer rotation 7000rmin
scorer dia. 90mm
scorer hole dia. 22mm
vertical spindle moulder
rotation speed 43006000rmin
cutterblock length 80mm
standard shaft dia. 30mm
workpiece min. Length 200mm
cutterblock vertical stroke 115mm
tool max. Dia. 160mm
motors
motor power 2.2kw*3
