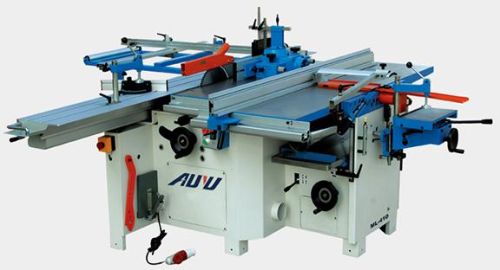

Contact SupplierWe are offering ml410 combined woodworking machine.
1. Heavy duty
2. Functions:
surface planer, thicknesser, sawing, mortiser, driller, profiling, moulder
model
ml410
ml360
max. Cross-cut width
2800mm
2800mm
cut width between blade and rip fence
880mm
880mm
saw blade φ
305mm
305mm
tilting saw blade
0-45°
0-45°
height of cut
90
90
height of cut with saw blade at 45°
65
65
ranges of thicknessing
6-240mm
6-240mm
spindle speed
175035006700rpm
175035006700rpm
spindle diameter
30mm
30mm
spindle:useful length
85mm
85mm
max.drilling diameter
16mm
16mm
motor power
planer: 3kw 400v50hz; sawmoulder: 2.2kw 400v50hz
2.2kw 220v(380v)50hz
netgross w
780kg850kg
725kg790kg
