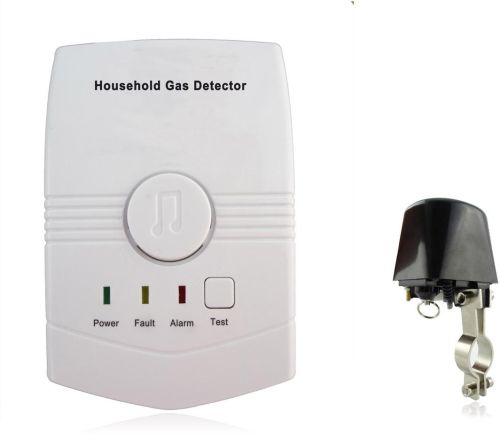

Combustible Gas Detector With Manipulator

We are offering combustible gas detector with manipulator
when the gas detector detect gas leak, the detector will send out sounds and flashed light , and automatically send a signal to shut off valve to cut off gas,giving people the opportunity to leave the dangerous area.
Product model：ak-200fcdm5
product description：
gas detector
1. Gas detected: natural gaslpgcoal gas
2. Alarm point set: 1.01.52.03.0kppm (natural gas:usual 3kppm)
3. Executive standard: cjt 347-2010
4. Measure range: 0-100%le (0-50kppm)
5. Alarm potin: 6%lel (3kppm)
6. Working environment: 0-60°c ≤95%rh
7. Input power : ac220vac230
8. Working voltage: dc12v
9. Static power: ≤1.2w
10. Alarm power: ≤3w
11. Response time: 80db (within 1m)
13. Gas sensor: 3 years service life
14. Electrochemical sensor
15. Alarm size: 111mm*71mm*44mmexecutive standard: cjt 347-2010
manipulator
1. Working voltage:10vdc-14vdc
2. Working current（12vdc）:100ｍａ（normal），600ｍａ（maximum）
3. Distance of wrench:40kg.cm
4. Working temperature:-10°c～55°c
5. Working humidity:＜95%
6. Storage temperature:-25°c～55°c
7. Pressure limit:86～106kpa
8. Usage life:5years
9. Usage venues:indoor
gas detector additional function：
gas detector can work with shut off valve(manipulator or solenoid valve), wired no or ncwireless 315mhz or 433mhz signal output, networking alarm function, connecting the exhaust fan etc.
Gas detector application
application for household kitchen, gas station and co-operated with gas company, fire-fighting company, property management company, housing corporation, construction engineering
