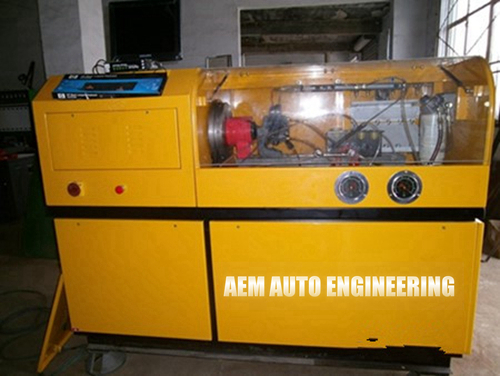

Common Rail Injection Pump Test Bench 2380mm×1300mm×1800mm

Characteristics:
1. Real-time control by industrial computer with windows system, touch screen operating system (or mouse).
2. Fuel mass is measured by sensor and displayed on 19” lenovo display.
3. Adopts bosch high-pressure common rail injection pump to generate 0~1600 bar pressure.
4. Real-time measure and control of rail pressure, with overpressure protection function.
5. The pulse width and frequency of injector’s driving signal are adjustable.
6. Injection time(s) of injector can be set at will.
7. The date of more than 700 kinds bosch and more than 10 kinds denso are searchable and savable.
8. Short-circuit protection.
9. Accurate measurement, easy operation, low noise and energy-efficient.
10. The fuel temperature control system adopts 2p presser force refrigeration
technical parameter:
1. Main motor power: 11kw,15kw,
2. Range of speed of test bench: 0～4000rpm
3. Test bench steering: forwardreverse
4. Testing frequency of common rail fuel injector: 0～100hz
5. Pulse width: 0.01～30ms
6. Pressure range: 0～200mpa
7. Fuel supply pressure: 0～1.6mpa
8. Fuel suction pressure: -0.1～0mpa
