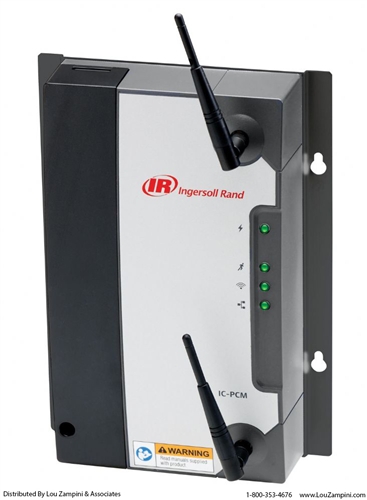

Communication Module

The QX Series Cordless Precision Screwdriver communications module delivers process control with IO, automatic configuration switching and real time data archiving for up to 10 tools per process communication module. Monitor what is happening with your QX Series screwdrivers while they are in production, and collect and store the results of every fastening cycle they perform. The included ICS-Connect software also allows you to analyze the historical results of your fastening cycles using graphs so that you can visually identify the average expected results and quickly identify outliers. The capability of this system is extremely impressive, especially for the price.
Wireless communication option delivers process control with IO, automatic configuration switching and real-time data archiving for up to 10 tools per Process Communication Module (PCM)
Plant-wide networking manages both process control inputs and feedback data using Ethernet, Fieldbus or IO, complete with data archiving
Model IC-PCM-2-US
Power Cord BC10-CORD-US
Tool Connections 1
Software ICS Connect Software
Power Supply 120 Volt AC Input, 5V DC Output
Communication Ethernet to ICS
Fieldbus Options EtherNetIP, DeviceNet, Interbus-S, Profibus, Modbus-TCP
Protocols Open Protocol, Ethernet EOR, Serial EOR
PrintersDevices Serial RS232, Bar Code, Label Printing
IO 8 inputs 8 outputs, with behaviour assignable through ICS software. Operates at 24VDC.
IO Power Supply 120 Volt AC Input, 24V DC Output
Indicators Power ON, System Ready, Wireless Activity, Ethernet Activity
Ambient Operating Conditions 0 - 50° C, 2090% non-condensing humidity
Enclosure IP52 mounted in upright vertical position
System Weight kg (lb) 1.4 kg (3.0lb)
Dimensions 291 mm x 103 mm x 210 mm
