Compact Dryers

We are offering compact dryers.

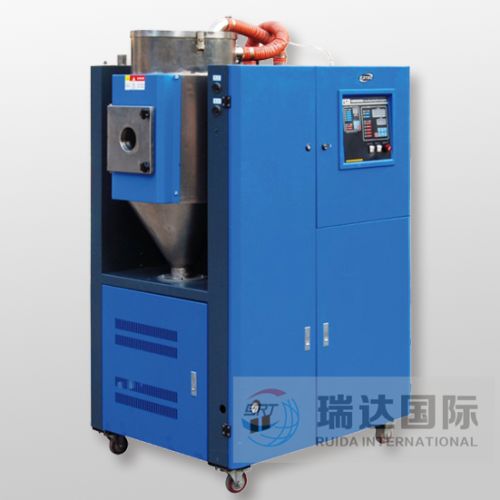

All-in-one compact dryers
the tcd series âall-in-oneâcompact dryers combine drying, dehumidifying, and two-stage conveying function in a single unit, they are suitable for drying arthroscopic engineering plastics, such as pa, pc, pbt, pet, etc. A honeycomb rotor is used in the dehumidifying section.
Features:
1. Tcd series compact dryers are equipped with honeycomb rotor for dehum, they have two kinds of design: fully-integral and semi-integral depending on the size;
2. Suitable for drying hygroscopic engineering plastics such as pa, pc, pbt, pet, rtc;
3. Integrated of dehumidifying, drying, and two-stage conve functions in a single unit, three-stage conve is also available as an option;
4. Insulated drying hopper features dry air down-blowing and cyclone exhaust design, this improves drying efficiency and reduces energy consumption which maintaining a steady drying effect;
5. Closed-loop conveying system eliminates the possibility of moisture re-absorption during air temperature and low dew-point;
6. The dehumidifying section of tcd series features two condensers to ensure a low return air temperature and low dew-point;
7. Equipped with pneumatic shut-off valve to ensure no material remains in the material line after each loading cycle;
8. Material processing is controlled via microprocessor as standard with touch screen plc control as an option for centralised and automatic operation;
9. Dew-point monitor can be fitted to monitor and display dry air dew-point;
