Contact SupplierWe are offering compact fan heater,heater

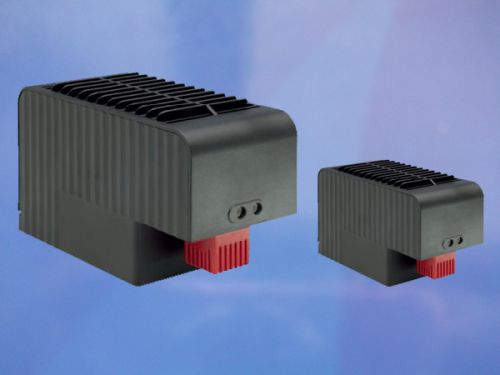

semiconductor compact high-performance fan heater serie csf 032 1,000w:
product technical data:
heating element: ptc resistortemperature limiting;
surface temperature: max. 80°c (176°f), except upper protective grille at 20°c (68°f) ambient temperature;
air outlet temperature :max. 110°c (212°f), 50mm above the grille;
temperature safety cut-out :to protect against overheating in case of fan failure,automatic reset;
axial fan, ball bearing :air flow 63m³/h, free flow service life 70,000h at 25°c (77°f);
connection: male power insert connector according to iec320 c18;
fuse: 10a time lag (t) integrated in connector – exchangeable;
casing:black;
mounting: clip for 35mm din rail, en 60715 or screw fixing (m5), tightening torque 2nm max.;
fitting position: airflow direction up;
dimensions: 150.5 x 88 x 66mm;
weight: approx. 0.5kg;
operation / storage temperature: -40 to +60°c (-40 to +140°f) / -40 to +70°c (-40 to +158°f);
operation / storage humidity: max. 90% rh (non-condensing);
protection type / protection class: ip20 / ii (double insulated);
