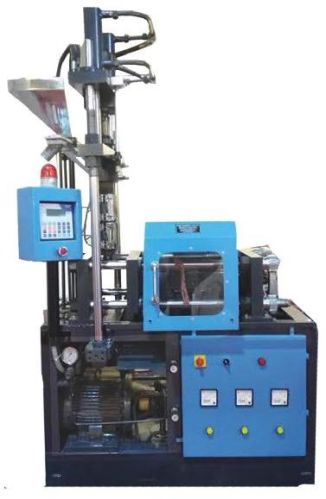

Compact Injection Moulding Machine

Compact fully auto vertical injection machine model - single phase power operation
screw dia 25 mm
shot weight 40 grams
max mould size 10x10 inches
mould opening 6 inches
motor 3 hp (single phase)
heating load 2 hp
total connected load 5 hp
hourly consumption of ~3-3.5 unit hour
toggle clamping
controls: plc
size: 4 x 2.5 x 6 feet
process all general thermoplastics like ld, hd, pp, abs, nylon, polyacetal and others
suitable to produce components like caps and closures, small containers, homeopathy containers, electrical switches, casing, medical components, drip irrigation parts and many other industrial and consumer products.
applications:
· commercial production of plastic parts
· for master batch pigments colour testing and chip moulding
· training in engineering colleges institutes and polytechnics
· testing labs (specimen moulding) and prototyping centers
· skill development centers iti and women welfare centers
· entrepreneurs, rural industry development and employment generation
we also have compact injection machine model for working on hand moulds – details in pdf of mini injection machine attached
we also offer similar - blow machine model (single phase) for bottles and containers to provide complete bottle, cap and plug set for sustainable business.
Achievements
winners of 4th national awards for technology innovations 2014 from govt of india
(from ministry dept. Of chemical & petrochemicals)
received recognition of excellence in 2010 from ipmmi
winners of plasticon awards 2005 from plastindia foundation
