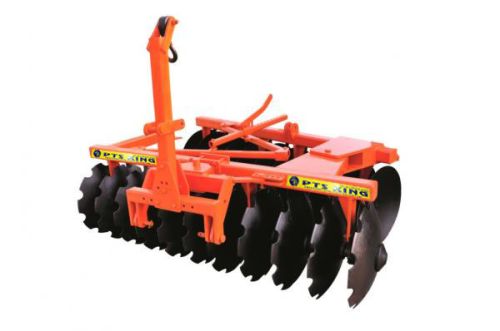

Compact Model Disc Harrow

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Heavily Weighted Frame is used to provide stability for the preparation of soil and make it compatible with variety of Tractors. Easy gang Adjustment to change the cutting depth and to get perfect level finish. Gang Axles (Adjustable) upto 45°. Also Available with Hydraulic system Easy to carry in mounted condition using tractor lift.

View More Details

Send Enquiry

Company Information

Punjab Tractor & Spares

Sector 3, Karnal, Haryana

View Number

Member Since 13 Years
Nature of Business Retailer
Year of Establishment 2003

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Description	PTSCMDH-16	PTSCMDH-18	PTSMDH-20	PTSCMDH-22	PTSCMDH-24
Frame (mm)	100×7 T (Sq. Pipe frame )
Gang Bolt /Axle (mm)	30 & 40mm (Solid Sq. Rod)
No. of disc	16	18	20	22	24
Type of Disc	Notched Disc In front gang & plain Disc In rear gang
Disc Diameter (mm)	610×4.5 T (24”) or 660 x 6 T (26”)
Width of cut (mm Approx.)	1912	2128	2345	2562	2778
Distance Between Disc (mm)	228 mm
Bearing Hub	6	8
Weight (Kg. Approx)	725	805	880	970	1025
Tractor Power (HP)	50-60	65-75	80-90	100-110	115-135
