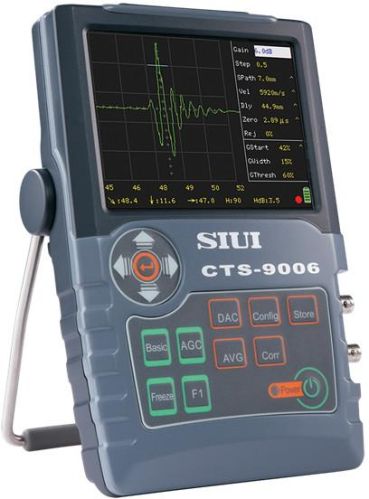

Compact Ultrasonic Flaw Detector, Brand Name : SIUI

We are offering compact ultrasonic flaw detector.
Superior features:
max. Sampling rate 240mhz; measurement resolution 0.1mm.
Operating frequency range: 0.5~10mhz.
20~500hz prf with 10 steps adjustable: avoid reverberation signals during flaw detection.
The agc (auto gain control) function, together with peak echo and image freeze function, help quickly identify the flaw highest echo, enabling efficient flaw detection.
The avg/dgs curve can make three curves of different equivalent values with one known flat-bottom hole or large flat-bottom echo.
The dac curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.
The 5.7” color tft lcd of wide viewing angle, high brightness and high definition delivers every clear detail.
Peak memory function facilitates quick scanning and measurement on work pieces.
Probe angle (k value) measurement function.
Three different color schemes can meet the requirement of different application environments and habits.
Up to 300 sets of curve and waveform can be saved for various work pieces and flaw detection standards.
Support up to 9 kinds of language.
Aws d1.1/d1.5, api and tcg functions are optional.
Application: it is suitable for inspecting flaw position and size, which can be widely used for various detection demands, such as pipes and tubes, welding lines, pressure vessels, forged pieces, coarse-crystal material and airplane parts.
