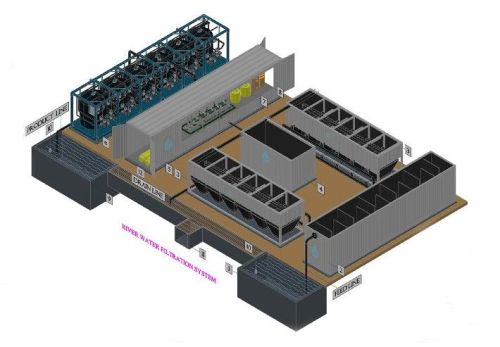

COMPACT WATER TREATMENT PLANT (CWTP)

state-of-the-art pre-engineered water treatment system, benefiting from decades of hands-on experience in clarification, filtration and disinfection hardware and software. The PACT® CWTP utilises high efficiency chemical and physical processes to achieve portable water standard TSS in a very compact foot-print.

NOTE: Ranging from 10 to 300 cum/hr serving populations of 1200 to 36,000 and multiplies with additional modules.

• Lift station (Option)
• Flocculation system either with motorised flash mix or static mixers and buffer plate.
• Lamella clarifiers includes weir plate, de-slugging system (manual or automatic) back-washing or cleaning system (manual or automatic)
• Media filtration with manual or automatic backwash system
• Vertical (FRP or MS)
• Horizontal (FRP or MS)
• Chemical Dosing System
• Pre-chlorination (Gas or NaOCI)
• Post- chlorination (Gas or NaOCI)
• Coagulant Dosing System
• Polymer Dosing System (Option)
• Buffer Cleared Water tank
• Pumping Station
• Filter feed Pump (1450/2900 RPM)
• S Body & impeller
• S Body with bronze impeller
• SS Body & impeller
• Backwash Pump (1450/2900 RPM)
• High Lift Pumps (1450/2900 RPM)
• S Body & impeller
• S Body with bronze impeller
• SS Body & impeller
• Air Scouring Air Blower
• MCC & PLC with HMI (Option)

• A modular concept allows for phased construction of water treatment plants and makes it adaptable to a wide range of sizes and flow rates
• Compact can be delivered as a containerised unit. This solution has such advantages as: factory installed and tested, no construction works on-site, short delivery period, easy to relocate.
• Lamella type setting media tested in hundreds of installation for setting efficiently and durability.
• Compact in size for minimum space required.
• Designed for minimum footprint
• Tested and perfected through dozens of installations worldwide
