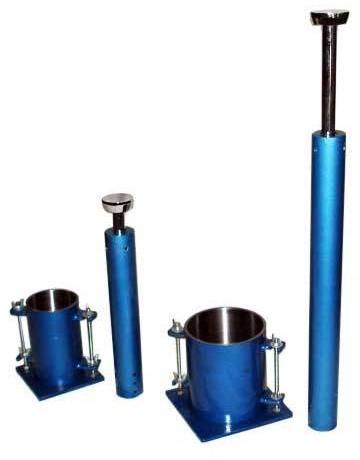

Compaction Test Apparatus

Soil compaction is of utmost requirement for constructing earth fill for dams, canal embankments, reservoirs, highways, runways and railways. The relationship between soil moisture content and compacted dry density largely determine the construction specifications and quality control of compacted earthfill. To check the strength of the soil the density of the soil is taken into account and hence the quality control is checked otherwise.
Specifications :
ENTEK-025

• Compaction test apparatus, IS: 2720 (P vii & viii), IS: 10074; BS: 1377, ASTM D 698, D558, D559, D560,D 1557, AASHTO T99,T 134.
• Proctor Mould 100 mm ID x 127.3 mm ht x 1000 c c volume with collar & base plate. Made of M. steel. Complete with Rammer 2.6 or 2.5 kg.
• Proctor Mould made of Gunmetal with rammer
• Proctor Mould 150 mm dia ID x 127.3 mm ht x 2250 c c volume with collar & base plate. Made of M. steel. Complete with Rammer 4.89 kg or 4.5 kg. Heavy compaction (Modified)
• Proctor Mould but 150 mm dia but made of Gunmetal with rammer.

Spare

• Proctor Mould 100 mm I .dia x 127.3 mm ht x 1000 cc with collar and base plate. Mild steel.
• Proctor Mould made of Gunmetal.
• Rammer 2.6 kg or 2.5 kg for light compaction.
• Rammer 4.89 kg or 4.5 kg for heavy compaction, modified.
