Steel+engineering Ceramics Composite Pipe, Brand Name : FREE-VALVE

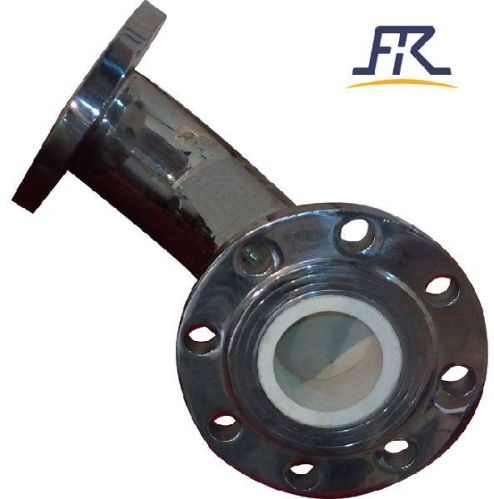

FREE-ValveÃ�¢Ã¯Â¿Ã‚½ÃƒÃ‚¯Ã‚¿Ã‚½s Ceramic Lined Composite Pipe and Ceramic Elbow include elbow, short section ,Tee joint ,reducer etc ,which are widely used in the powder of pneumatic conveying and pumping conveying . Due to the large abrasives , high hardness ,high speed ,large flow rate of medium ,the ceramic ring lined composite pipes can greatly prolong the speed of pipes wear out .
Features
1. Ceramic lined steel pipe has strong wear resistance performance and anti
-erosion capacity.
2. With Smooth inner wall, will not blocked by the powder medium .
3. Good anti-abrasive performance ,longer working life time
Technical Specification
The standards of flange ends ASME B16.5,GB/T9113
Nominal Pressure 1.0MPa,Class150
Size Range DN50~DN 300, NPS2 ~NPS12
Connection type Flange/ Welding
Working Temperature Ã�¢Ã¯Â¿Ã‚½ÃƒÃ¯Â¿Â½Ãƒ‚¤200Ã�¢Ã¯Â¿Ã‚½ÃƒÃ‚¯Ã‚¿Ã‚½
Pipe material Engineering ceramic+ Steel
Application:
1. Slag draining,��� ash removal, powder feeding and back powder systems in power plants.
2. Iron alloy conveying of steel-making,��� slag conveying pipeline, external refining��� and so on in steel plant.
3. LiCoO2 ��� powder��� ,raw slurry conveying in cement plant,��� coal powder conveying, concrete conveying pipe.
