COMPREHENSIVE LED TEST EQUIPMENT

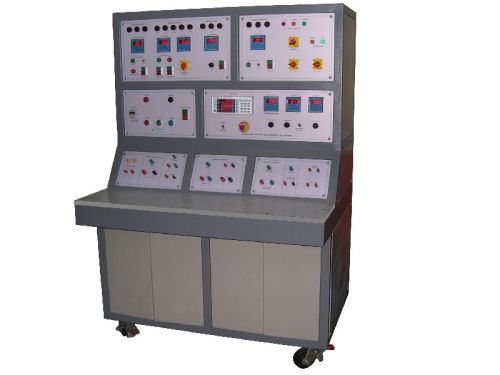

TEST SET UP FOR LED DRIVER, MCPCB AND LUMINARY FIXTURE SCR ELEKTRONIKS have developed a Comprehensive tester for the manufacturers of LED Luminary to test their LED MCPCB, LED Drivers and LED Fixtures, in a single bench.

Features

Manual mode: To select, either driver testing or MCPCB testing or the LED luminary fixture testing, there is a selector switching for choosing it. According to this selector swith position, the tests for a particular test would be activated
In manual mode first the settings(parameters) for all the tests need to b done manually. For Ex.
There is a Variac Knob to adjust the HV required and a leakage current selector switch to set the leakage current range.
There is a potmeter to set the resistance range for the Earth Bond test. There are various other switches.
There is a selector switch to set the resistance range for the Insulation test.
There is a potmeter to set the leakage current for the leakage current test
The equipment would have 4 meters to display the result of 4 tests- HV test, Earth Bond Test, Insulation Test, Leakage Current Test.
For checking the performance of the LED component at rated voltage 230V/+-10%, there are 3 more meters to display the Voltage, Current, And Wattage of the LED component.
(Working on equipment is very easy to operate and we will provide a manual for the entire testing equipment which would contain “working manual mode” segment where you can easily understand the manual working”
2) Auto Mode: There is a PC Computer System. This is a standard branded PC with windows operating system. This is used for collecting the test results from panel and display it on PC Monitor. This also provides interface for Barcode / QR Code Scanner and Barcode / QR Code Printer. The specially designed software “Testware” is installed in PC for generating reports and providing connectively to other computer/LAN.
Testware(software): This is customised software for data collection, display & stored Test result, scanner, printer and other computer server.
The screen would have a menu screen, and many other sub windows where there will be options to Log in, Conduct
test, Report, Settings etc. Below is an example v
