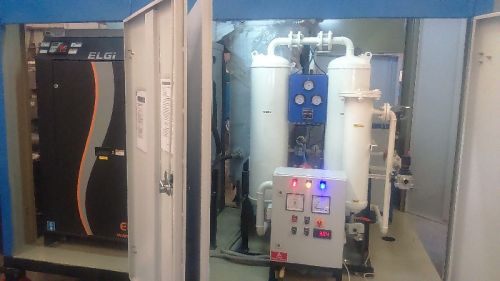

Compressed Air Dryer System

Owing to our well-maintained and organized inventory system, we deliver the same in the committed time. Customers can provide their specifications to us in regards to the packaging of the products as we serve customized packaging requirements. We ensure damage-free products at customer's end.
Description for working :

• A Heatless compressed air dryer is the desiccant air dryer for achieving a dew point of -70^oC or better.
• Process - Incoming compressed air is dried with refrigeration dryer then it passes through carbon filter, pre filter passes through the slide piston valve assembly and is directed towards absorber chamber I where the compressed air passes through the high quality of desiccant. Compressed air drying takes place by absorption. Dry compressed air from absorber chamber I is then passes though the check valve assembly and then through the after filter to the transformer.
• While compressed air is being drying in chamber I the desiccant in chamber II where the desiccant has been wetted in the previous cycle is being simultaneously regenerated. The chamber II is depressurized to the atmosphere through the purge valve in the downward direction. A portion of the dry compressed air passes thrugh the needle valve / orifice plate through the desiccant and flushes out the desorbed moisture.
• When the regeneration is complete, the purge valve is closed and the tower is slowly depressurized to line pressure for a smooth changeover. Efficient dew point of - 70^oC or better can be achieved through effective drying system comprising of refrigeration dryer and Heatless Air Dryer.
• For Continuous measurement of the quality of the air online digital dew point meter can be provided on request.
