Compression Fittings

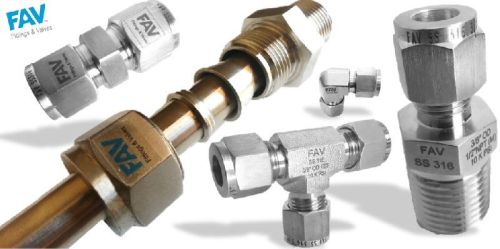

FAV range of Double Ferrule Compression Fittings  work on the proven principle of two ferrules swaging to the tube when tightened. As the nut is tightened the front ferrule swages on to the tube making a prominent leak-proof seal and the back ferrule makes a positive impression on the tube. Available in numerous configurations and sizes, our Double Ferrule Compression Fittings are made up of four parts consisting of a body, front ferrule, back ferrule, and nut. Outstanding leak-tight connections are consistent as the two-ferrule design compensates for any tolerances in tube outer diameter, wall, thickness, and material hardness. Our stainless steelCompression fittings feature low-torque, two-ferrule design provides fast and reliable leak-tight connections, even in systems having high vibration or rapid temperature and pressure fluctuations.

FAV Fittings has been specifically designed for use on instrumentation, process and control systems, together with equipment employed in chemical, chromatography, petroleum, power generation and pulp & paper plants.

FAV Fittings are available in Stainless Steel, Brass, Steel, Monel, High Duty Bronze, Hastelloy C, Incoloy, Inconel 600. Straight fittings are machined from cold finished bar stock and shaped bodies are machined from close grain forgings. The raw materials used fully conform to the chemical requirements of one or more of the specifications listed.

FAV Double Ferrule Compression Fittings are manufactured to stringent quality control program and standards which assure the highest quality available in the industry. We are a global industry leading provider of fitting solutions.

Advantages of FAV Double Ferrule Compression Fittings

1.       FAV Double Ferrule Compression Fittings do not twist the tube during installation.

2.       Make and remake of the fittings is very much eased, as nuts are silver plated internally to prevent galling of threads.

3.       Low torque Operation

4.       Positive leak free seal assembly and reassembly

5.       Size range from 1/16” to 2” (2mm to 38mm O.D.tubing)

6.       Variety of end connections and patterns as per Customer Requests
