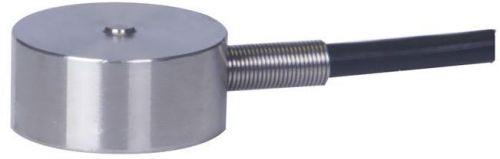

Compression Load Cell

We are offering load cells for force measuring(lau-c4 ltu-c4). Rated capacity:20,50,100,200,300,500kg
accuracy class:x
features:aluminum alloy & stainless steel
micro ctructure
application:special used for force measuring in a narow space
item specification
rated capacity 20,50,100,200,300,500kg
dimension ã�â¦25.4*11
rated output (2.0ã�â±0.5%)mv/v
zero balance ã�â±0.1000mv/v
non-linearity error ã�â±0.5%r.o.
hysteresis,repeatability error ã�â±0.5%r.o.
creep in 2 min. ã�â±0.5%r.o./2min
tem.effect on output ã�â±0.5%r.o./10ã¢ï¿½ï¿½
temp.effect on zero ã�â±0.5%r.o./10ã¢ï¿½ï¿½
input resistance 350ã�â©ã�â±10
output resistance 350ã�â©ã�â±310
safe overload 120%.r.c
insulation resistance ã¢ï¿½â¥2000mã�â© operating temp.range -10to+40ã¢ï¿½ï¿½
excitation,recommended 6vdc
cable,length �3mm*2m.
