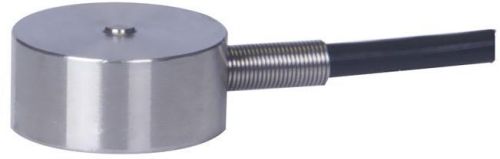

Contact SupplierWe are offering compression load cell(lau-c4 ltu-c4).
Features
material:aluminum alloy & stainless steel
micro structure
special used for force measuring in a narrow spzce.
Specifications
rated capacity:20,50,100,200,300,500kg
accuracy class:±0.5%r.o.
Rated output:2.0±0.5%mvv
zero balance:±0.1mvv
input resistance:350±10ω
output resistance:350±10ω
linearity error:±0.5%r.o.
repeatability error:±0.5%r.o.
hysteresis error:±0.5%r.o.
creep in 2 min.:±0.5%r.o.
temp.effect on output:±0.5%r.o.10℃
temp.effect on zero:±0.5%r.o.10℃
excitation,recommended:≤6vdc
operating temp.range;-10to+40℃
safe overload:120%r.c.
insulation resistance:≥2000mω(50vdc)
cable,length:ø3mmx2m
