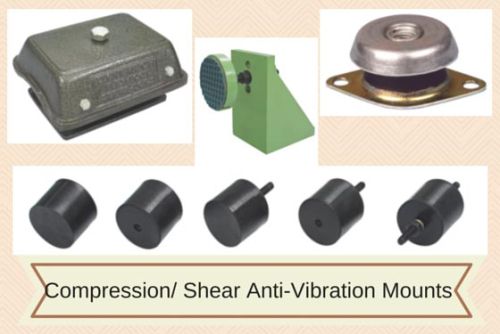

Compression/ Shear Vibration Damping Mounts

Compression shear vibration damping mounts
dynemech compac machinery mounts uses eleastomeric rubber compound in compression and shear. They provide tight tolerances on stiffness rate for accurate vibration calculations. Load range is from 40 to 130 kgs per piece. The strong base metal withstands high shock loads without deformation. Fitted as standard with a shock-proof device (up to 4.5g) with resilient stop, it is ideal for mobile or marine use. It has a domed shape cover to protect against oil contamination. Being light weight and compact, it is ideal for diesel engines, compressors, cooling towers, pumps, industrial generators, marine generators, id, fd fans etc. These vibration absorbing machinery mounts make the spring-mass system less rigid, thus increasing elesticity and affording vibration isolation. Elastomeric vibration damping materials made of special composite material achieve the best vibration isolation property along with high efficiency, endurance, resistance to common industrial solvents and environmental agents in reasonable cost.
dynemech stud mounts, series ds are highly effective , low cost and compact vibration dampers for a variety of applications like - compressors, pumps, id & fd fans, motors, machine tools, gensets, air conditioners, measuring and testing equipments instruments, material handling equipments, laboratory equipments etc. These bobbin type buffers are a low cost solution to reducing vibration & shock. These mounts can be used for load applications in both compression and shear. These bobbin rubber mountings are available with various thread configurations.
