Contact SupplierWe are offering djyvp/djyvpr/djypv/djypvr/djypvp/djypvpr, computer cable
product description

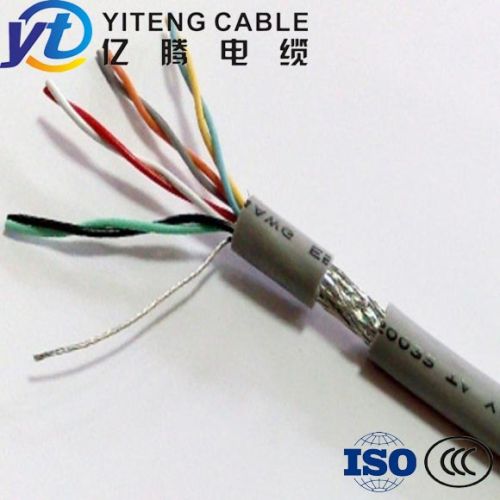

computer cable djyvp 2*2*1.0
pe insulated , pvc sheathed instrument cable is used in electronic computer system, monitoring circuit, automatic control system of signal transmission and detection instrument connections.
Relevant standards: ticw06-2009
conductor material : bare copper
constitude structure:11.13+-0.011m
strand od:1.13mm
insulation material :pe
insulation mean thickness:0.63mm
insulation the thinnest point:0.47mm
insulation od: 2.4+-0.1mm
insulation color:(blue, white) ( red, blue)
shielding( braiding lay)
overall: bare copper braided shielding: above 80%.
Jacket material: pvc
jacket colour: black.
Jacket mean thickness :1.1mm
jacket the thinnest point:0.84mm
finish approxomate diameter: 10.3+-0.5mm
max. Conductor dc resistance at 20c (omkm):19.5.
Rated voltage: 300500v.
Min bending radius: fixed installtaion:6*d
mobile installation:15*d
rated temperature: -30c-+90c.
