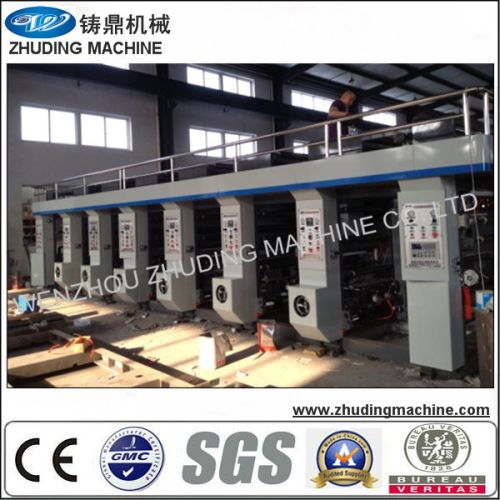

Computer Combination Gravure Printing Machine, Brand Name : ZHUDING

We are offering Computer Combination Gravure Printing Machine.
1.characteristics:
this machine is used for cellophane, bopp, pet, pvc, pe, aluminium foil and web with good printing performance for multi-color continuous printing.
1. The whole machine is fixed by permutation combination, according to the customers' requirement, the printing color unit can be increased or decreased and the cover printing mechanism can be added as well.
2. The traction and rewinding adopt frequency conversion and synchronous speed regulation.
3. Each unit of computer flashed system is controlled by separate micro-processor. It can adjust the flashed deviation quickly and precisely.
4. General shaft style installment.
5. Display of flashed deviation, correcting of system comprehensive deviation as superdifference alarming function.
6. Double photoelectrical checking improves the whole checking and speed adjustment.
7. Rewinding and discharging traction are adopted with full automatic, tension controller and magnetic powder brake and clutch to control.
8. The winding adopts frequency conversion traction, while the pressing roller adopts pneumatic componevts to control.
9. Printing roller and discharging traction pressing roller are both adopted with pneumatic unit to control.
10. Pneumatic back pressure shifting blade.
11. Ink circulating system.
12. Gas expansion type loading and unloading shaft.
13. Unwinding and rewinding are both double working mechanisms to meet non-stop roll-change.
2.main technical parameters:
model asy-zd8600 asy-zd8800 asy-zd81000
printing length 240-1100 mm 240-1100 mm 240-1100 mm
printing width 600 mm 800 mm 1000 mm
color number 1-8 1-8 1-8
printing speed ≤110 mmin ≤110 mmin ≤110 mmin
precision of register ≤0.12mm ≤0.12mm ≤0.12mm
gross power 46 kw 58 kw 72 kw
weight of machine approx 9000 kg approx 10000 kg approx 12000 kg
dimensions (l×w×h)(mm) 10800×2050×2720 10800×2050×2720 10800×2050×2720.
