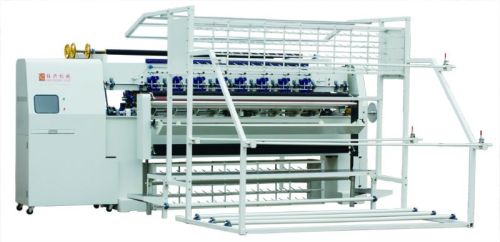

Computer Non-shuttle Multi-needle Quilting Machine(yxn-94-3ah)

We offer computer non-shuttle multi-needle quilting machine(yxn-94-3ah).
Function:
1. Adopt the advanced process design.
2. High rigidity machine body, perfect protecting equipment and steady-going control system
3. X�Y motors are driven by servo system, and principal axis takes frequency ports system.
4. Test the working state of all sensors and computer in real time.
5. Auto-stop when the bottom or upper thread breaks (by infrared)
6. Auto faults tips for servo motor system and transducer, that convenient to eliminate problem.
7. 360°and limitless multi-span and independent patterns
8. Steady running, high speed, low noise, precise quilting
Specification:
Product Name Computerized Non-shuttle (chain stitch) multi-needle quilting machine
Model YXN-94-3AH
Over size(L*W*H) 4800*1600*2000mm
Weight 4000kg
Max.quilting width 2485mm
Needle bar space 50.8, 76.2, 127(5�)/76.2,76.2, 154.4(6�)
Max.quilting thickness 50mm
Rotation speed 600-900r/min
Output 45-180m/hour
Needle type #21-24
Max.horizontal movement 410mm
Needle space 25.4mm
Stitch size 2-8mm
Power supply 380v/220v
Power 5KW
