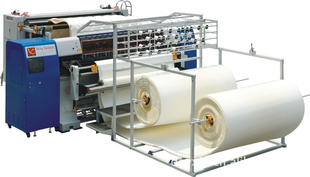

Computer Non-shuttle Multi-needle Quilting Machine(yxn-94-4d)

We offer computer non-shuttle multi-needle quilting machine(yxn-94-4d).
specification:
product name computerized non-shuttle (chain stitch) multi-needle quilting machine
model yxn-94-4d
over size(l*w*h) 4800*1600*2000mm
weight 4500kg
max.quilting width 2485mm
needle bar space 50.8, 76.2, (2''+3''+3'')
max.quilting thickness 80mm
rotation speed 600-900r/min
output 10-180m/hour
needle type #21-24
max.horizontal movement 410mm
needle space 25.4mm
stitch size 2-8mm
power supply 380v/220v
power 7kw
function:
adopt the advanced process design
needle bar and pressing block take the double rocker, avoid the materials be soiled by lube.
High rigidity machine body, perfect protecting equipment and steady-going control system.
X, y motors are driven by servo system, and principal axis takes frequency ports system.
Test the working state of all sensors and computer in real time.
auto-stop system when the upper or bottom thread broke by infrared. Auto lift needle and adjust the speed by computer.
Auto faults tips for servo motor system and transducer, which is convenient to eliminate problems.
360 quilting, and limitless multi-span and independent quitling.
Steady running, hign speed, low noise, very thick material with pricise quilting
ringing notice when start machine.
