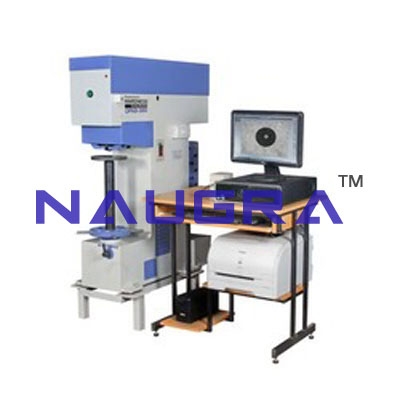

Computerized Brinell Hardness Testing Machine

Description and Specification for Lab Tenders

Computerized Brinell Hardness Testing Machine.

Features: Automatic spindle up & down Dwell time setting Computerized system i.e. Brinell Image Analysis systems (B.I.A.S.) PC & Window (XP) Operating system procured by customer Range of measurement is from 1 mm to 6 mm diameter with the resolution of 0.01 mm Software Features: Well managed data base Saves readings with respect to batch and certificate Report generation in the form of certificate and graph Designed in accordance with International Standards: Technical Specifications: Load (kgf) 250, 500, 750, 1000, 1500, 2000, 2500 and 3000 kgf Load Control Auto (By Hydraulic ) Start Operation Automatic start (By push button/Hydraulic Power Pack) Dwell Time 0 to 99 seconds Accuracy Conforms to ASTM-E 10/IS 1500 Max. Specimen Height 9.5 in. (240 mm) Max. Specimen Depth 50 in. (130 mm) Initial load Nil Size of BAE 370 x 670 mm Driver motor 0.33-415 V/P HP Main supply /Cy/PH 415/50/3 Standard Accessories: Anvil, Flat (7.9 in./200 mm) Anvil, Flat (2.4 in/60 mm) Anvil, V ( 2.4 in/ 60 mm) Hardness Standard Ball Indenter (0.4 in./10 mm & 5mm) Spare Fuse Power Cord Dust Cover Instruction Manual Hardness Conversion Table
