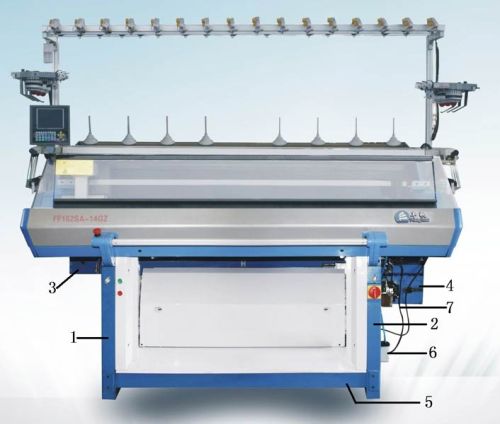

Computerized Jacquard Flat Knitting Machine

We offer computerized jacquard flat knitting machine.
ff-152sa、ff-154sa、ff-252sa、ff-254sa、ff-256sa、ff-254ba、ff-256ba
gauge: 5g, 6g、7g、12g、14g、15g
knilling width: maximum width is 56 inch
knitting system: single systemdouble systemtriple system
knittin speed: 24 levels, maximum speed is 1.2 m sec., program command control
driving method: servo electrical machinery controlled by computer ensures to run stably
with high torque whatever the speed is high or low.
stitch density system: controlled by stepping motor, 24-level of 0~650 density is adjustable
neilsbed: apply inlayed, can changed if it is damaged.
racking: 2 inches racking range, controlled by servo motor, available for inching
cloth wind-up motion: latest automatic wind-up motion, 64-level electronic control,available for inching.
needle selection: 8-level selector
triangle system: triangle compound design, individual or simultaneous "knit-transfer" both for single or double system as well as one system "knit-transfer" while the other system keeps knitting to ensure high efficiency.
color-changing system: 2 x 8 groups yarn carriers are on the left & right sides of 4 guide rails, can shift yarn carrier at any position of neilsbed.
protection system: the machine automatically alarms with sound-light by stopping the machine if there is situation of yarn-breaking, knotting, cloth-falling,needle-broken, needle colliding, backwards rewinding, end of knitting,motor over loading, fail of racking.
controlling system: adopt lcd industrial screen, input device is usb, graphics interface and keyboard operation.
sinker: special sinker and conlrol installation, benefit for complex knitting.
memory function: adopt cmos technology, there is memory during power off time.
power supply: ac220v, 50hz
volume and weight of the package: length x width x height:2650x1050x1810:net weight:1000kg.
