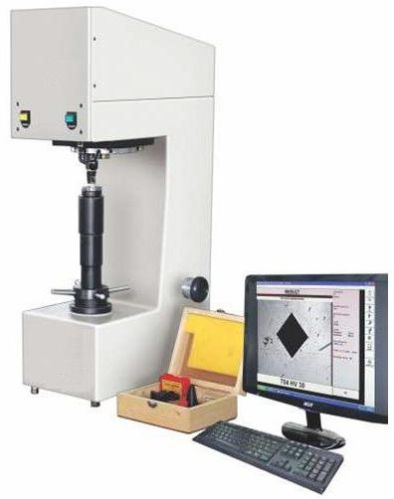

    Computerized Vickers Hardness Tester

    Computerized Vickers Hardness Tester

    Get Latest Price
    • Maximum Height (mm)200
    • Test Loads5,10,20,30,50 kgf
    • Machine Dimension (mm)L585 X W290 X H860
    • Throat Depth (mm)135
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Electromech Engineersverified-icon
    location Ichalkaranji, Kolhapur, Maharashtra
    4.6/5fill iconfill iconfill iconfill iconhalf icon(9)
    View Number
    • calendar Member Since 15 Years
    • building Nature of Business Retailer
    • gst icon GST No. 27BERPK2695M1ZL
    • Company Video

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Machine Dimension (mm)L585 X W290 X H860
    • Throat Depth (mm)135
    • Diagonal measuring range (mm)0.05 to 0.4
    • Test Loads5,10,20,30,50 kgf
    • Optional Test Load1 kgf
    • Maximum Height (mm)200
    • Weight (approx)70 kg.
    • Scale least count (mm)0.001
    • Power Supply220 VAC, 50 Hz, 1-Phase.

    • Wide Testing Range from Soft metal to medium hardness Steel.
    • Motorized loading/unloading.
    • High Accuracy & Repeatability of measurement at all loads.



    Features :

    • Computerized (PC based) Vickers Hardness Machine.
    • Direct & accurate measurement of Vickers hardness number using "State of the art" image processing technology.
    • Wide testing range: from soft metal up to hardest.
    • High accuracy & repeatability of measurement at all loads.
    • Faster measurement yielding to higher productivity.
    • Small size of indentation makes it a non destructive testing on finished components.
    • Motorized loading and unloading cycle.
    • Small loads allow testing on thin sheet metals.


    Standard Specification

    Standard Test Block1 no.
    Diamond indenter1 no.
    Weight1 Set
    Flat Anvil 1 no.
    Vee-type anvil (small & Big)1 no. Each
    Spanners1 Set
    Electric Cord & PC Interface Cord1 no. Each
    USB Device for Video1 no.
    Software CD1 no.
    Operating Manual 1 no.
