Con-rod Bushing Boring Machine

We are offering con-rod bushing boring machine.
Main technical parameters
range of bored hole diameter φ16mm — φ100mm
distanced of rod hole center 110mm — 420mm
feeding speed 0-320mmmin（stepless）
work table travel 240mm
main shaft speed 350rpm 520rpm 820rpm 1120rmin
motor power 0.650.85kw
dimension(l×w×h) 1400mm×530mm×1700mm

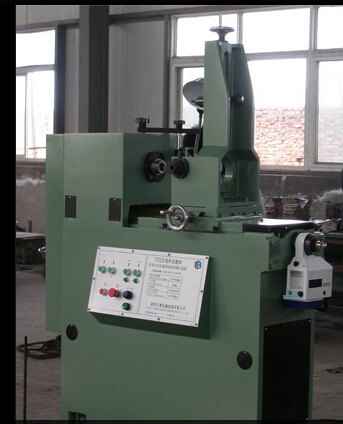

con-rod bushing boring machine model t8210d
product description
this machine can be used with cylinder body bushing boring machine model t8115bx16. It has good performance, better structure easy operation and high accuracy. It is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors. In case of necessity, rod bushing seat hole can be fine bored. The rough and fine boring processing for the holes on other parts can be also completed after changing the corresponding clamps. Besides, it has the accessories for centering sectifying tool, boring tool and boring micro-adjustment etc.
