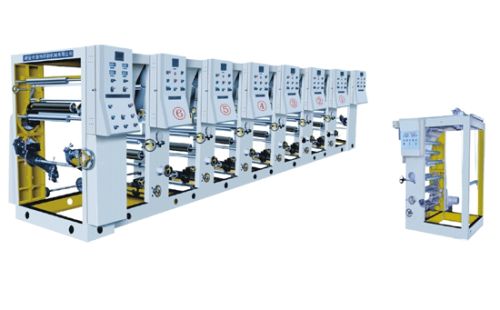

Contact SupplierWe are offering concave composite color press machine.
use:
this machine is suitable for bopp、pet、pvc、pe and rolling paper etc with good printing performance of rolling material for multicolor continuous printing.
feature:
printing color unit can be increased or decreased according to the customers’ requirement with composite style. The printing can be finished one time continuously with both sides.
with 360 degree of installment system, easy operation, and stability, the parts of transmission is adopted with gear structure with full sealing lubrication. The tension system is adopted with magnet powder clutch controller, the parts of rewinding is adopted with torque motor. With double over passage design, fast drying, fast printing winding and rewinding are both double working mechanisms to make the material complete with non-stop.
main technical parameter:
length of printing 220-1000mm
breadth of printing 600-1000mm
speed of printing 5-35m/min
precision of overprint ≤0.15mm
gross installation power 18kw
external demension 8400×2100×2000
weight of machine 4000kg
