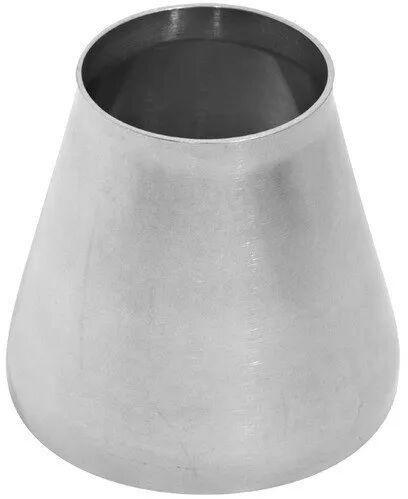

SS Concentric Reducer

₹ 125 / Kilogram

Product Details

Size1/2"NB TO 36 "NB IN
MaterialSS
Reducer TypeConcentric
I Deal InNew Only
BrandKWALITY
StandardASME ANSI B16.9, ANSI B16.28, MSS-SP-43 DIN DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 EN EN10
End Connection TypeButtweld
Surface FinishFinished Polished

Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Sizes	1/2″NB TO 36 “NB IN
Types	Concentric Reducers, Eccentric Reducers
Wall Thickness	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Value Added Services	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades	Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards of Buttweld Pipe Reducers

ASTM A403 – ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9	Factory-Made Wrought Fittings Buttwelding
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Short Radius Elbows and Buttwelding Returns
MSS SP-43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Buttweld Pipe Reducers Material Grades

Stainless Steel Reducer	ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Reducer	ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Reducer	ASTM A420 WPL3, A420 WPL6
Alloy Steel Reducer	ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Reducer	ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Reducer	ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
