STIPL Blue Electric Mild Steel Concora Medium Fluter

Definition : Rigidity of the fluted structure is one of the essential characteristics of corrugated board and flat crush resistance is necessary to prevent crushing of the flute structure on the corrugator and other converting equipment. The corrugating medium test (CMT) permits the evaluation of corrugating medium before it is fabricated into combined board, and may also be used as a basis for judgement of fabrication efficiency.

Standardization : ISO 7263 , TAPPI T809, SCAN P27 , PAPTAC D29 , APPITA/ AS 1301.434s

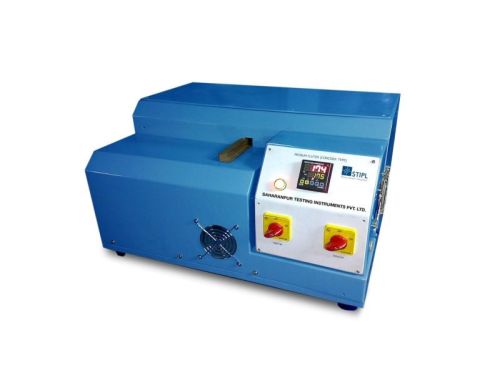

Device Description : the concora medium fluter consists of 2 directly heated segmentds with 175+- 5*C , covered through a front plate and pressed against each other with definite force . the segmentd are directly heated with 200 W heating power . the sample is put on top and falls out ready from an opening in the lower area of the fluter. The sample is glued on a tape with the help of a “Third Hand” and is then ready for testing in a crush tester.

Test Description : the sample is put into the opening on the top of the instrument . by pressing the start button , the stripe with 6”x ½” (152.4 x 12.7 mm) dimesion is inserted into the machine and falls out ready formed on the lower part . the sample is then laid onto the opened “Third Hand” the holder is closed and the tape is glued onto the sample . this sample is now ready for testing.
