Concrete Batching Plant

Listing ID #1894422

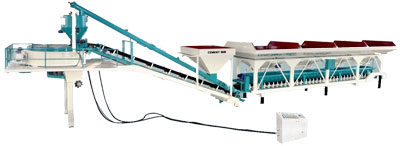

Model YI-30 is a fully automatic, compact Mobile Concrete Batching Plant with gravel & sand hoppers on single chassis with two nos. wheel axles & separate frame for Pan Mixer. The towing arrangement in the plant facilitates it to be towed by tractor or equivalent power.

The plant comprises of adequate capacity gravel & sand hoppers, weighing conveyor suspended on electronic load cells, Pan type mixer unit, additive tank. Cement silo with screw conveyor, Rubber belt type charging conveyor, PLC based control panel.

• Fully automatic plant with mix material output capacity of 30 m3/hr.
• Easy mobility (Two Chassis); can be towed by tractor or similar power.
• Easy to erect since no foundation / civil work.
• Short cycle time and high uniform concrete quality.
• Each hopper storage capacity is 2.5 m3 and is fitted with pneumatically operated gates.
• Integral weighing conveyor is suspended on 4 nos. electronic load cells for weighing of gravel & sand.
• Vibratory motor is fitted on one hopper meant for sand.
• Rubber belt type charging conveyor transfers the weighed gravels (aggregates) and sand from the weighing conveyor beneath the hoppers to the Pan Mixer unit.
• Pan type Mixer unit of 0.75 m3 capacity fabricated from heavy duty steel is having 10 mm thick wear resistant replaceable liner plate.
• Spring loaded paddle mixer arms with replaceable blades.
• The mixing arms driven by Imported Planetary Gear Box coupled with 30 HP motor.
• Inbuilt Additive tank with self priming pump.
• Cement Silo of 1.5 tons storage capacity with screw conveyor for transferring the cement to Pan Mixer unit.
• Separate weighing arrangement with electronic load cells for cement parallel to gravel & sand weighing reduces the cycle time; thus increasing the concrete mix output.
• Control Cabin with PLC based control panel capable of storing 50 different recipes.
• Total connected Electric load 64.0 H.P.
