Concrete Block Making Machines, Packaging Type : PP Bag

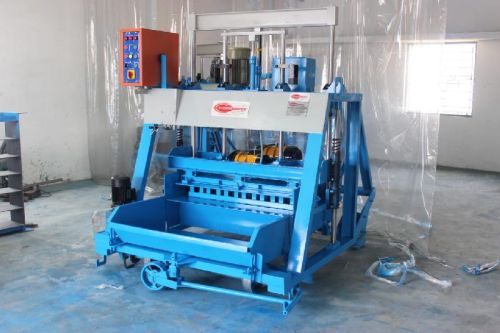

we are offering everon 1107 heavy duty concrete block making machine. This is heavy duty model an egg laying type hydraulic operated concrete block making machine on wheels, which will lay block on the concrete floor and move to the next laying. Any type of concrete blocks can be produced with consistent quality , high strength and pressure with accurate sizes by fixing different types of concrete mould and ram in the machine. Technical specifications 1107 model triple vibrator total power 3 phase 415 v 9 h.p hydraulic motor 5 h.p 1440 rpm vibrator mould motor 2 h.p 2880 rpm vibrator ram motor 1 h.p 2880 rpm - travel motor 1 h.p 1440 rpm weight 1800 kg (approx ) operating pressure 140 kgcm³ quality features heavy : channels, plates, rods , hydraulic system , gear box, rubber fittings, specialized electric system , branded motors , bolts & nuts and all fittings with shutter vibrator and pressing system. Heavy moulds using 10 & 12 mm plates with hard crome plated, square pipes with accurate sizes. Dimensions 1750 x 1525 x 1800 mm production capacity 50 – 60 stroke hour 400 x 200 x 100 mm 09 block stroke 400 x 200 x 150 mm 06 block stroke 400 x 200 x 200 mm 05 block stroke 300 x 200x 100 mm 12 blocks stroke 300 x 200x 150 mm 09 blocks stroke 300 x 200x 200 mm 08 blocks stroke
