Contact SupplierWe are offering Concrete Brick Making Machine, Color Paver Block.
Special in concrete block making machine,equipped with different molds to produce various concrete blocks

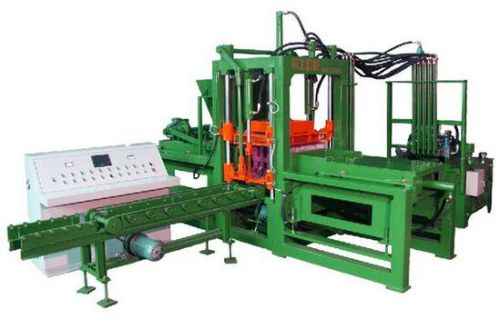

qft3-20 concrete brick making machine
leading technologies in our block industry, with a whole automated line, world class flexibility, quality and cost-efficiency. Our machines are already have exported to asia, us, and europe, india, many customers come back to order more lines.
outside size
5000×4500×2700(mm)
weight
8000kg
rated pressure
21mp
vibration frequency
50hz;3000-4000r/min
pallet size
695×560×15(mm)
power
30kw
standard brick
20pcs/mould 238x11x51mm
28000pcs/8 hours
paver
12pcs/moul d 200x100x60(80)mm
17280pcs in 8 hours
hollow brick
4pcs/mould 250x250x80(100)mm
5760pcs in 8 hours
cellular block
3pcs/mould 400x200x80(100)mm
4320pcs in 8 hours
huagong company can supply our customer with the whole service, technical
support, kiln design etc. Our company fully assist our customers set up a new brick factory, to help them get the biggest input with the lowest output based on our good reputation, advanced technology and design, rich experience in this line for many years.
