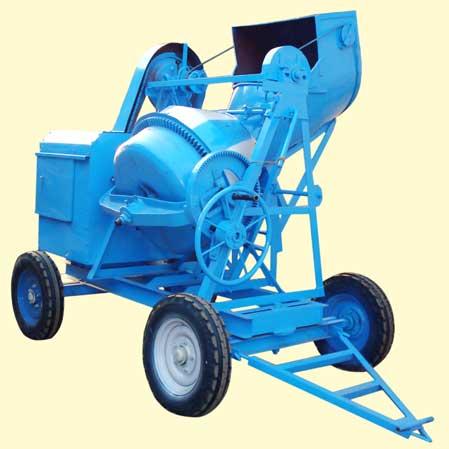

Contact SupplierWe are offering concrete mixer. The 10/7 concrete mixer hand feed type machine is popular in small construction work due to its cost effectiveness, durability & steadiness. Gunmetal bushes and ball bearing are used for smooth operation. This mixer work on 6 hp air cooled diesel engines or 5 hp electric motor with starter. This machine also has an option of being fitted on four pneumatic types, the machine transmission can also be drive through chains and sprockets, and motor & engine cabin can also be provided.
| Type | Telting |
|---|---|
| Capacity unmixed in litres/cft | 280/10 |
| Capacity Mixed in litres/cft | 200/7 |
| Drum Speed R.P.M. | 20/22 |
| Thickness Of Drum Cone in mm | 3.15 |
| Drum Cone & Mixing blade | Individually renewable |
| Size of Drum opening In mm. | 500 |
| Drum | Cast Iron G.M. Bushes Fitted Centrally & balanced by Flaps |
| Frame and Chassis | Rigid all steel constructions |
| Discharge height in mm. | 500 |
| Transmission | Roller chain |
| Powered by | 6 BHP. Air Cooled Diesel Engine OR Electric Motor & Starter |
| Pneumatic wheel | 500x19 |
| Approx. weight of basic machine in kg. | 1250 |
