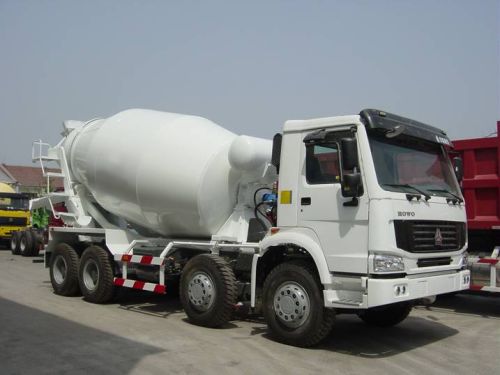

We are offering concrete mixer truck.
Main description
overall dimensions:9355mm*2496mm*3950mm(l*w*h)
tare weight:13870kg payload:25000kg
front overhang:1500mm rear overhang:2680mm
wheelbase:3825mm+1350mm track (fr) 2022mm1830mm
chassis
chassis brand:sinotruk howo
chassis model :zz1257n3841w, driving type: 8x4
cab :hw76, left hand drive, air-conditioner, one sleeper
engine:sinotruk wd615.69, 336hp, euro ii emission standard,
transmission:hw15710, no. Of speeds: 10 forward & 2 reverse
steering: german zf8098, turning system pressure 18mpa
rear axle: hc16 tandem axle, rated load 2x16ton, ratio 5.73
wheels and tires
rim 8.5-20; tire 12.00r20, 10 units; spare wheel carrier: with one spare wheel
brakes
service brake: dual circuit pneumatic brake; parking brake: spring energy,
compressed air operating on rear wheels; auxiliary brake: engine exhaust brake
mixing system
mixing volume:10cbm
water tank volume 440l
hydraulic pump brand: ark, italy
motor brand: ark, italy
speed reducer
brand: topunion, italy
