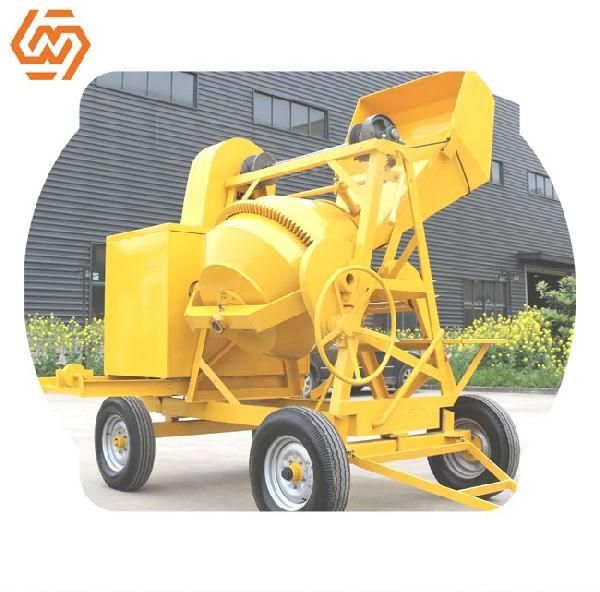

Concrete Mixing Machine Portable Concrete Mixer RMWF Series

Invech Portable Self-loading Concrete Mixer Hydraulic Gasoline Concrete Mixing Machine RMAF-500

1. Description:

Concrete Mixer is twin shaft compulsory concrete mixer, which can mix harsh , plasticit, liquidity, light aggregate concrete and various mortar.Drum sets with wear resistant cast liner and mixing blade, which is durable and easy to replace.
This series concrete mixer is designed reasonable, compact structure, easy to operate and work stably, and it also has many advantages such as good mixing quality, high productivity, low energy consumption, low noise, with long life wearing parts.

2. Product Series

 2.1 RM Series
Model
RM-120
RM-200
RM-350
Drum Capacity
120L
200L
350L
Motor Power
2.5KW
2.5KW
2.8KW
N.W/G. W (KG)
46-51
62-65
90-95
Stir Quantity (KG)
40
110
300
Thickness (MM)
2
2
2.5
Width (MM)
610
700
790
Distance to ground (MM)
480
530
520
Cartons Size (MM)
730*580*400
790*750*490
940*780*820
Motor Speed (RPM)
1380-1400





2.2 RMS Series
Model
RMS-350
RMS-400
Drum Capacity
350L
400L
Discharge Capacity
280L
320L
Productivity (M3/H)
4-5
5-6
Roller Speed (RPM)
25-30
Thickness (MM)
3
Mixing Drum Size (MM)
800x900
850x900
Power Option
Air-cooled Diesel Engine 178FS(6HP)
Air-cooled Diesel Engine186FS(10HP)
Water-cooled Diesel EngineR175(6HP)
Water- cooled Diesel EngineR180(8HP)
Honda Gasoline EngineGX270(9HP)
Electric Motor 3KW
Total Weight (KG)
280
Overall Size (L x W x H)
1960x1100x1700MM
2100x1200x1800MM


2.3 RMAF Series

Model
RMAF-500
Drum Capacity
500L
Mixing Capacity
400L
Productivity (M3/H)
8-10
Roller Speed (RPM)
22
Motor Power
186FSE (10 HP)
Motor Engine
Air-cooled Diesel Engine
Drum Thickness
2.75-3.75mm
Hopper Tipping
Hydraulic
Transmission Way
Chain
Type of The Tires
4*(5.00-15)
Overall Dimension (L x W x H)
2100*1300*2100mm
Weight (KG)
1100




2.4 RMWF Series
Model
RMWF-510
Drum Capacity
510L
Mixing Capacity
350L
Productivity (M3/H)
20
Roller Speed (RPM)
30
Motor Power
ZS1100(16HP)
Motor Engine
Water-cooled Diesel Engine
Drum Thickness
2.75-3.75mm
Hopper Tipping
By Wire Rope
Transmission Way
Chain
Type of The Tires
205/75/R14
Overall Dimension (L x W x H)
2300*1350*2750 mm
Weight (KG)
1500
