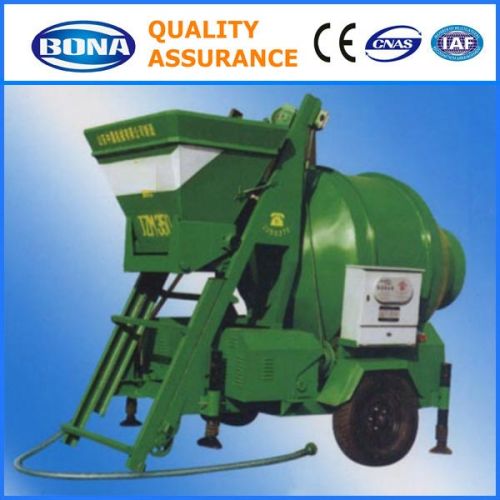

Concrete Mixing Machine, Power : 1-3kw, 3-6kw, 6-9kw, 9-12kw

We are offering Concrete Mixing Machine. Jzm350 concrete mixer is a kind of self-fall double-prick reversal discharging machine; the drum is driven by the gear ring; during working, the frontal revolution is mixing, and the reversal revolution is discharging. The plastic and half-dry hard cement can be mixed. It is applicable to the common construction working site, road, bridge and each kind of cement manufacturer
jzm350 main technical parameters
charging volume: 560l
discharging volume: 350l
productivity: 10-14m3h
mixing canister rotate speed: 13rmin
maximum size of aggregate: 60mm
water-supply error: ≤ 2%
discharging height: 1250mm
mixing electric motor: 5.5kw(y132s-6)
water pump electric motor: 0.55kw(40jdb-12)
lifting electric motor: 4kw(yez112m-4)
outline size (l×b×h): 4310×2140×4240mm
total weight: 2217kg
