Concrete Mixing Plant, Power : 60KW

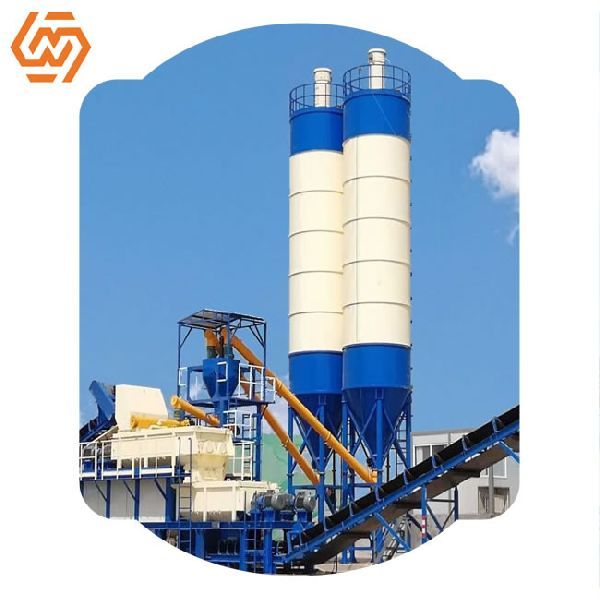

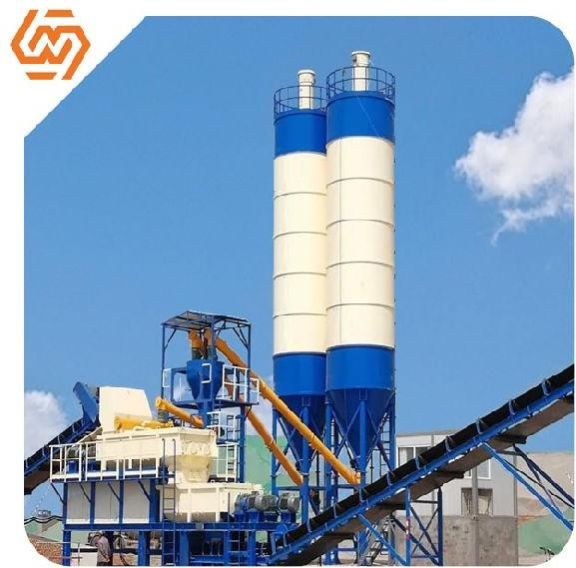

HZS series belt conveyor concrete mixing plant, on the basis of the combination advantages from various foreign mixing building and station and advanced technology, has been developed and produced. It adopts modular strueture design, which maintains convenient installation and removal, safe, comfortable and reliable operation, with good mixing effect and high efficiency.
Besides, the HZS series belt conveyor concrete mixing plant adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintenance.The HZS series belt conveyor conerete mixing plant is the optimal equipment of large and medium construction sites, water power, highway, harbor, bridge, airport, large precast products plant and commercial concrete plants and so on.

Series Parameters
Model
HZS60
HZS75
HZS90
HZS120
HZS150
HZS180
Discharging Capacity (L)
1000
1500
1500
2000
2500
3000
Charging Capacity(L)
1600
2400
2400
3200
4000
4800
Maximum Productivity(m³/h)
60
75
90
120
150
180
Charging Model
belt conveyor
Skip Hopper
belt conveyor
belt conveyor
belt conveyor
belt conveyor
Standard Discharging Height(m)
4.2
4.2
4.2
3.8~4.5
4.5
4.5
Number of Species of Aggregate
3~4
3~4
4
4
4
4
Maximum Aggregate Size(mm)
≤80mm
≤80mm
≤80mm
≤120mm
≤150mm
≤180mm
Cement/Powder Silo Capacity(set)
3×100T
3×100T
3×100T
4×100T or 200T
4×200T
4×200T
Mixing Cycle Time(s)
60
60
60
60
30
30
Total Installed Capacity(kw)
145
110
198.06
210
230
288
