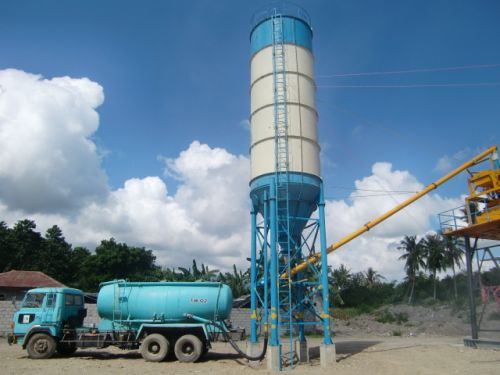

Concrete Mixing Plant, Capacity : 35 m3/h

We are offering concrete mixing plant.
descriptions of concrete mixing plant:
hzs series concrete mixing plant designed by zhengzhou unique industrial equipment co., ltd has advanced technology in the world. It is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy , the electric power , the railroad, the road , the tunnel, the arch of bridge , the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spread. It can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.
technical parameters of hzs35 concrete mixing plant:
capacity: 35 m3/h
mixing time: 60 s
max aggregate size: 60/80 mm
discharging height: 3800 mm
total power: 70kw
total weight: 30ton
total dimensions: 15200×8500×15400 mm.
1. Mixing system
twin shaft concrete mixer: js750
volume: 1200l
capacity: 750l
mixing blade: 2×8 pcs
mixing speed: 30.5 r.min
mixer motor: 30kw
weight: 6150kg
dimensions: 4550×2250×2450mm
2. Aggregate system
2.1 aggregate batcher: pld1200
volume: 3×2.2 m3
capacity: 60 m3/h
power: 5×3 kw
weight: 4900 kg
dimension: 9600×2000×3200mm
2.2 lifting hopper: 1 unit
speed: 0.32 m/s
power of motor: 7.5 kw
3. Cement system (optional)
3.1 cement silo: 2units
capacity: 50t×2=100t
silo diameter: φ2800
3.2 cement screw feeder: 2units
diameter: φ219mm
length: 9m
4. Additive system (optional)
additive silo capacity: 1m3
pneumatic valve: φ50 mm
pump: 3kw
5. Water system
motor power: 3kw
butterfly valve: φ150 mm
capacity: 80m3/h
6. Air system
air compressor: 1unit
power: 7.5 kw
pressure: 1.0 mpa
air flew: 1.2 m3/min
7. Weighing system
7.1 aggregate weighing: 1unit
weighing capacity: 2000kg
precision: ±1%
7.2 cement weighing: 1unit
weighing capacity: 400kg
precision: ±1%
7.3 water weighing: 1unit
weighing capacity: 200 kg
precision: ±1%
7.4 additive weighing: 1unit
weighing capacity: 40 kg
precision: ±1%
8. Control system
plc command and control operation .
main electrical components : schneider or simense
17’’ colorful computer
manuel and auto control is freely changeable .
