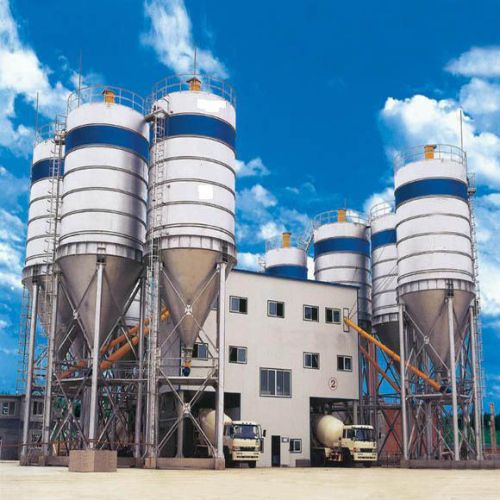

Concrete Mixing Plant, Brand Name : RP

We are offering hzs120 concrete mixing plant.
Main technical parameters of hzs120 concrete mixing plant hzs120 concrete mixing plant is composed of material supply, batching system, mixing, electrical control and steel structure. Concrete mixers (concrete pump) is ideal concrete equipment for building project, building ground and precast product factory. Our company design the concrete mixing plant based on more than 20years experience, proved by global market customers, our design is scientific, economical , and minimize the mechanic damage.
the main characteristic is:
1.the machine adopts js2000（js2000b）concrete mixer, it has good mixing quality and high efficiency.
2.the batching machine is adopts pld3200q-ⅳ,is measuring nicety and high produce efficiency.
3.the forced water supply system spray equably and has washing function for the mixing system.
4.it adopts the electrical weigh system to measure all the aggregate, cement, water, liquid additive.
5.the hoist electromotor adopts safe drive, it prolong the service life.
theoretical production rate
m3h
120
discharge height
m
4
mixer model
js2000
power of mixing plant
kw
2×37
theoretical production cycle
s
60
volume of mixer weighed outlet
l
2000
maximum aggregate size
mm
80
volume of powder bin
t(ρ=1.35)
100×3
volume of aggregate bin
m3
12×4
type of aggregate
4
installed capacity
kw
188
weighing scope and measuring accuracy of aggregate
kg
(0～3000)±2%
weighing scope and measuring accuracy of
cement
kg
(0～1200)±1%
weighing scope and measuring accuracy of
coal ash
kg
(0～500)±1%
weighing scope and measuring accuracy of
water
kg
(0～500)±1%
weighing scope and measuring accuracy of
additive
kg
(0～50)±1%
customized to your favorite colors and configurations according to your project demands. Send us your demand today!
