Concrete Mixing Plant, Brand Name : RP

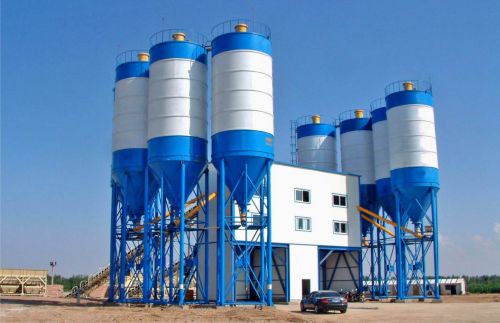

We are offering HZS180 Concrete Mixing Plant.
Our company design the concrete mixing plant based on more than 20years experience, proved by global market customers, our design is scientific, economical , and minimize the mechanic damage.Following is the character of the concrete mixing plant:
1.High efficiency, low fuel consumption, and environmental care.
2.Modular function and design; quick installation and site transfer.
3.Equipped with Italy SICOMA dual-horizontal axis forced type main mixing machine, featuring superior mixing capacity and high reliability.
4.Measurement, control and signal transfer element all adopt products of world famous brand; independent measuring of various kinds of materials (or cumulative measurement), stable performance and accurate measurement.
5.Advanced industrial computer + PLC control mode, inferior PLC executive signal sampling and output control, superior industrial computer dynamic displays the production process and management. It can achieve full automatic control and manual control, featuring simple operation, friendly interface, high reliability and flexible expanding.
6.It can also be designed according to the requirements and conditions (i.e. site, output, environmental care, structural appearance).
Main Technical Parameters of HZS180 Concrete Mixing Plant
Items
Unit
HZS1802HZS180
Theoretical production rate
m3h
180360
Discharge Height
m
4.2
Mixer Model
MAO40003000
Power of Mixing Plant
kw
2×55
Theoretical production cycle
s
60
Volume of Mixer weighed outlet
L
3000
Maximum Aggregate Size
mm
≤80
Volume of Powder Bin (Optional)
t(ρ=1.35)
100×4
Volume of Aggregate Bin
m3
15×4
Type of Aggregate
4
Installed capacity
kw
290580
Weighing scope and Measuring Accuracy of Aggregate
kg
(0～3000)±2%
Weighing scope and Measuring Accuracy of
Cement
kg
(0～1200)±1%
Weighing scope and Measuring Accuracy of
Coal Ash
kg
(0～500)±1%
Weighing scope and Measuring Accuracy of
Water
kg
(0～500)±1%
Weighing scope and Measuring Accuracy of
Additive
kg
(0～50)±1%
We customized to your favorite colors and configurations according to your project demands. Send us your demand today!
