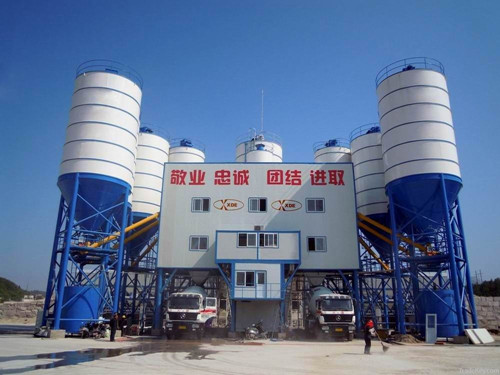

Concrete Mixing Plant

We are offering concrete mixing plant. 1.concrete batching plant
hzs series concrete batching plant  is widely used in big or medium building projects,
road and bridges projects, precast concrete plants, etc.
It is an ideal choice for producing commercial concrete.
Hzs series stationary concrete batching plant has two feeding methods.one is hopper type, it is used for lower than 50m3 per hour output production.the other is belt type, it is often used for higher than 60m3 per hour output production.for export, we adopt full automatic control system for our stationary concrete mixing plant.it is pc+plc control, which can vividly display the production process on the screen,so that the operator can monitor in real time.
2.details
model hzs25 hzs35 hzs50 hzs60 hzs75 hzs90 hzs120 hzs180 hzs240
capacity (m3h) 25 35 50 60 75 90 120 180 240
mixer js500 js750 js1000 js1000 js1500 js1500 js2000 js3000 js4000
aggregate batcher pld800 pld1200 pld1600 pld1600 pld2400 pld2400 pld3200 pld4800 pld6400
discharge height (m) 1.6(1.8) 1.6(3.8) 3.8 3.8 3.8 3.8 3.9 3.9 3.9
cycle time (s) 60 60 60 60 60 60 60 60(72) 60(72)
weighing accuracy aggregate ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
cement ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01
water ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01
additive ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01
3. principal components of the concrete batching plant
1. Mixing system
2.weighing system
3.delivery system: aggregate delivery system,powder delivery system, liquid delivery system
4. Storage system:cemnet silos
5.control system
