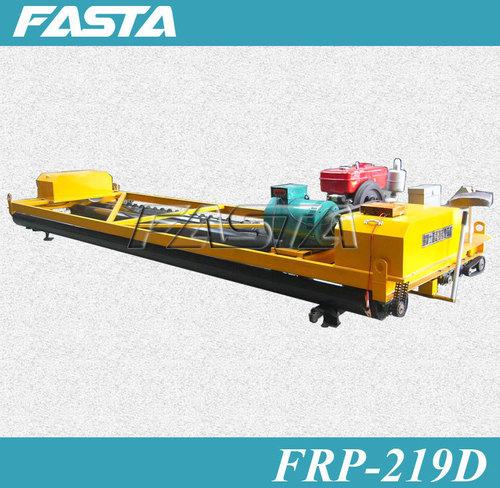

Concrete Paving Machine With Diesel Generator

With the support of our expert, our company is dedicated Exporter, Manufacturer & Supplier of Concrete Roller Paver With Diesel Engine in Xuchang, Henan, China. Fasta FRP219D Concrete Roller paver is applied to impacting and smoothing the concrete road surface.
This machine fixed with the diesel engine and generator to supply power for the electrical motor.
And no need to connect the power supply. So it can be used under different voltage and frequency.
Technical Data:
Model FRP219D
Paving Width(mtr):3--10
Vibrating Frequency(Hz):40
Excitation Force(Kn):5.52
Travel Speed(mmin):8.4
Roller Diameter-3Rollers(mm):219each
Paving Thickness(mm):300
Auger Rotation Speed(mm):200
Strike Tube Rotation Speed Max(rpm):300
Drive Tube Motor Rating(Kw):7.5
Strike Tube Motor Rating(Kw):3
Diesel engine output(hp):30
Generator Power(kw):24
Operating Weight(Kg):1600
Dimensions(LxWxH mm):Lx1803x815
Competitive Advantages of the product
� With diesel engine and generator to supply the power.
� Optional Auger for spreading concrete available.
� Electrical power operation (Option Engine Driven also available).
� Advanced steel strike tube with excitation force of 5.52Kn.
� Strike tube leaves aggregate at the surface for more durable slab.
� Minimum labour required.
� Available in sizes to 4, 5, 6, 7, 8 & 9mtrs.
� Performs up to 10,000 sq. ft. per hour.
� Multiple passes in both forward & reverse direction.
