Concrete Permeability Apparatus

Listing ID #4256658

  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

    Introduction A concrete structure is considered to be of adequate durability if it performs in accordance with its intended level of functionality and serviceability over an expected or....
View More Details
Send Enquiry

Company Information

  • Member Since 10 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon



Introduction A concrete structure is considered to be of adequate durability if it performs in accordance with its intended level of functionality and serviceability over an expected or predicted life cycle. Concrete durability depends largely on the ease (or difficulty) with which fluids (water, carbon dioxide, oxygen) in the form of liquid or gas can migrate through the hardened concrete mass. Concrete is a porous material. Therefore, moisture movement can occur by flow, diffusion, or sorption. We are concerned with all three, but generally the overall potential for moisture in concrete by these three modes is referred to as its permeability.

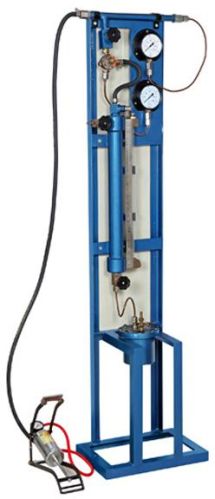

General Descriptions & Specifications The set up consist of permeability cell, water reservoir and pressure lines, with glass bottles.

Permeability Cell Consists of a metal cylinder with a ledge at the bottom for retaining the specimen, a flange at the top, removable cover plate and a funnel. A rubber gasket is seated in matching grooves, between the cell and the cover plate, to render the joint water tight. Internal working size of the cell will be 100mm dia X 100mm hight.

Water Reservoir Consists of a length of metal pipe, 50 to 100 mm in diameter and about 500 mm long. The reservoir fitted with a graduated side arm gauge-glass for admitting water and compressed air and a cock for drainage, bleeding and connection to the permeability cell.

Pressure Lines Heavy duty armored rubber hose with end fittings. Complete with glass bottles but without compressor. For specimen size 100 X 100 mm

  Concrete permeability tester for three specimen of (100mm dia x 100mm height) or (150mm dia x 150mm height) or (150mm cube) is also available.
Relavant Standard : IS : 3085

Optional Accessories Air Compressor
