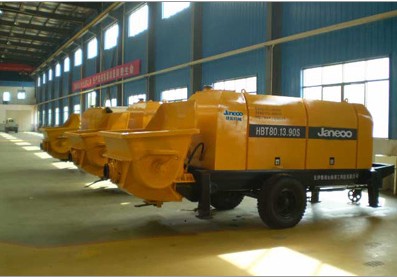

Concrete pump, Size : 40 mm to 200 mm

Hbt60a-11
-90s hbt90-18
-174s hbt60b-11
-130s
concrete therortical
delivery pressure(mpa) high pressure 11 18 11
low pressure 6.5 10.5 6.5
concrete conveying
theoretical discharge
capacity(m3/h) high pressure
small volume 36 58 36
low pressure
small volume 60 95 60
main drive(kw) rated power 90 174 112
rated working
pressure(mpa) 32 32 32
main oil pump rated working
flow (l/min) 260 546 260
theoretical max.
conveying distance (m) pipe dia. φ 125mm horizontal
800 vertical
180 horizontal
1200 vertical
320 horizontal
800 vertical
180
φ 150mm horizontal
700 vertical
150 horizontal
1100 vertical
300 horizontal
700 vertical
150
max. aggregate
size (mm) pipe dia. φ 150mm 50 50 50
φ 125mm 40 40 40
coveying cylinder
dia. *max. stroke (mm) φ 180*1800 φ 200*1800 φ 180*1800
bucket capacity*
loading height (m3*mm) 0.6*1320 0.6*1320 0.6*1320
hydraulic tank
volume (l) 560 560/180 diesel
tank volume 560/180 diesel
tank volume
hydraulic oil model 46#anti-wear hydraulic oil 46#anti-wear hydraulic oil 46#anti-wear hydraulic oil
overall dismensions
l*w*h (mm) 5637*2075*2066 6685*2085*2072 5637*2075*2066
max. towing speed (km/h) grade 2 highway≤ 15km

grade 2 highway≤ 15km

grade 2 highway≤ 15km

total mass (kg) 6100 7100 6100
